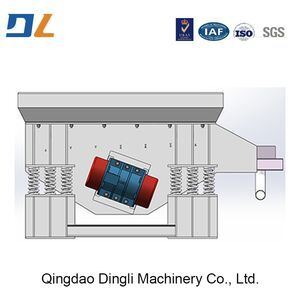

L12 Stationary Vibrating Sand Separator
| MOQ: | 1 Piece |
| Price: | US $1,000-20,000 / |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
L12
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Vibration Frequency:
45-55 Hz
Sieve Inclination:
5°-8° Adjustable
Screen Type:
Perforated / Woven Mesh
Control System:
PLC + 7" Color HMI
Transport Package:
Export Packaging
Specification:
Customizable
Trademark:
DL
Origin:
China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description
Product Description of L12 Series Fixed Vibratory Shakeout Machine
The L12 Series Fixed Vibratory Shakeout Machine is a high-efficiency mold-breaking and sand-separation system designed for small-to-medium foundries, suitable for green sand, furan resin sand, alkaline phenolic sand, and other molding processes. Utilizing a dual-shaft inertial exciter + frame-type elastic support structure, the L12 delivers controlled directional vibration to rapidly break down cooled molds and efficiently separate castings from sand—ensuring smooth casting discharge and continuous sand flow, significantly improving cleaning efficiency.
Constructed with a fully welded Q345B high-strength steel frame, the machine offers excellent rigidity, fatigue resistance, and long service life. Equipped with replaceable wear-resistant screen plates (perforated or woven mesh), it effectively separates large sand clumps from fines while protecting castings. The L12 integrates seamlessly with apron conveyors, bucket elevators, magnetic separators, and cooling beds—forming a complete reclaimed sand recovery and casting handling system, widely used in automated shakeout operations for engine blocks, transmission housings, pumps, and valves.
Working Principle
Mold Feeding
Molds with castings are fed into the inlet zone via manual cart, robot arm, or roller conveyor, smoothly transitioning onto the vibrating screen surface, ready for shakeout.
Molds with castings are fed into the inlet zone via manual cart, robot arm, or roller conveyor, smoothly transitioning onto the vibrating screen surface, ready for shakeout.
Vibration-Induced Breakup & Sand Removal
Upon startup, dual-shaft inertial exciters generate directional force, causing the screen box to vibrate at 45–55 Hz in an approximate linear motion. The mold breaks apart quickly; sand falls through the screen openings into a collection hopper or belt conveyor, while castings move forward along the screen.
Upon startup, dual-shaft inertial exciters generate directional force, causing the screen box to vibrate at 45–55 Hz in an approximate linear motion. The mold breaks apart quickly; sand falls through the screen openings into a collection hopper or belt conveyor, while castings move forward along the screen.
Casting & Residual Sand Separation
The inclined screen (5°–8° slope) uses gravity and vibration to move castings toward the discharge end while shaking off residual sand. Large unbroken sand clumps are carried as oversize material to a crusher or manual cleanup station.
The inclined screen (5°–8° slope) uses gravity and vibration to move castings toward the discharge end while shaking off residual sand. Large unbroken sand clumps are carried as oversize material to a crusher or manual cleanup station.
Smart Control & Safety ProtectionControl: PLC + HMI touchscreen for start/stop, timer setting, fault alarms
Safety interlocks: Emergency stop, vibration monitoring, overload protection
Optional: Remote monitoring, runtime tracking, energy statistics, MES integration
Safety interlocks: Emergency stop, vibration monitoring, overload protection
Optional: Remote monitoring, runtime tracking, energy statistics, MES integration
Key Features
Dual-Shaft Inertial Excitation, High Efficiency
Adjustable exciting force (20–60 kN), stable frequency, short shakeout time (30–90 sec/mold), sand removal rate ≥95%—reducing downstream manual cleaning workload.
Adjustable exciting force (20–60 kN), stable frequency, short shakeout time (30–90 sec/mold), sand removal rate ≥95%—reducing downstream manual cleaning workload.
Robust Structure, Wear-Resistant
Frame made of Q345B high-strength steel with stress-relief annealing; screens use NM400 wear-resistant steel or stainless woven mesh, lifespan ≥8,000 hours; overall design life ≥10 years.
Elastic Support, Smooth Operation, Low Noise
Rubber springs or composite isolators provide >90% vibration isolation, noise level ≤80 dB(A)—improving workshop environment and meeting national environmental standards.
Modular Design, Easy Maintenance
Quick-release screen panels—replacement in <30 minutes; external exciters for easy lubrication and inspection; standardized components with high interchangeability—reducing maintenance costs.
Smart Control, User-Friendly Operation
PLC + color touchscreen with manual/auto/test modes; self-diagnosis with Chinese-language fault alerts; expandable MODBUS RTU / PROFINET for seamless MES integration.
Eco-Friendly, Dust-Controlled
Optional top dust hood + pulse-jet collector captures dust during shakeout, emissions <15 mg/m³—compliant with GB 16297 "Comprehensive Emission Standards for Air Pollutants".
Main Technical Specifications | |||
Max Mold Size (L×W) | 1000×800 mm | 1500×1000 mm | 2000×1200 mm |
Capacity | 15 - 25 boxes per hour | 10–20 boxes per hour | 8–15 boxes per hour |
Exciting Force | 20–40 kN | 30–50 kN | 40–60 kN |
Vibration Frequency | 45–55 Hz | 45–55 Hz | 45–55 Hz |
Sieve Inclination | 5°–8° Adjustable | 5°–8° Adjustable | 5°–8° Adjustable |
Screen Type | Perforated / Woven Mesh | Perforated / Woven Mesh | Perforated / Woven Mesh |
Main Motor | 2×7.5 kW | 2×11 kW | 2×15 kW |
Control System | PLC + 7" Color HMI | PLC + 7" Color HMI | PLC + 7" Color HMI |
Weight | 3,200 kg | 5,800 kg | 8,500 kg |
Protection Rating | IP55 (Control Cabinet IP65) | IP55 (Control Cabinet IP65) | IP55 (Control Cabinet IP65) |
Optional Configurations:
Top Dust Hood & Pulse-Jet Collector
Hydraulic Screen Tensioning System
Casting Guide Chute & Buffer Receiving Hopper
Remote IoT Monitoring Platform
Hydraulic Screen Tensioning System
Casting Guide Chute & Buffer Receiving Hopper
Remote IoT Monitoring Platform
Explosion-Proof Design (Ex d IIB T4)
Typical Applications
Shakeout unit for small-to-medium green sand/resin sand lines
Efficient sand removal and casting transfer for engine blocks and housings
Integrated with apron conveyor, elevator, and magnetic separator for sand reclamation
Supports manual or robotic loading/unloading
Integrated with apron conveyor, elevator, and magnetic separator for sand reclamation
Supports manual or robotic loading/unloading
Connects to MES for production logging and equipment monitoring
