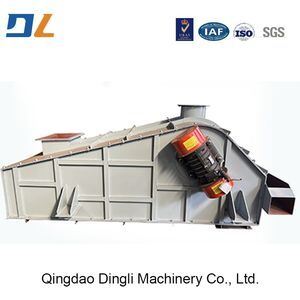

S457 Linear Sand Screening Equipment
Basic Properties
Certification:CE, RoHS, GS, ISO9001
Trading Properties
Minimum Order Quantity:1 Piece
Price:US $7,000-15,000 /
Specifications
| Model NO.: | S457 | Control Type: | PLC |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Automatic Grade: | Automatic | Type: | Sand Casting |
| Vibration Angle: | 30°-45° Adjustable | Decks: | Single/Double |
| Screen Type: | Perforated / Woven / Polyurethane | Protection Rating: | IP55 (Control Cabinet IP65) |
| Transport Package: | Export Packaging | Specification: | Customizable |
| Trademark: | DL | Origin: | China |
| HS Code: | 8474802000 | Production Capacity: | 800 |
Product Description
Product Description
Product Description of S457 Linear Vibrating Screen
The S457 Linear Vibrating Screen is a high-efficiency dry screening machine designed for foundry, mining, metallurgy, and building materials industries, suitable for classification, dewatering, dedusting, and cooling of molding sand, reclaimed sand, and granular materials. Utilizing a dual-shaft inertial exciter + wear-resistant screen body + elastic isolation structure, the S457 delivers directional linear vibration for rapid, uniform material distribution and efficient separation—ensuring high throughput, low clogging, and long service life.
Constructed with a Q345B high-strength steel welded frame, stress-relieved by full annealing, the machine offers excellent rigidity and durability. Screen panels are available in perforated plate, woven mesh, or composite types—adaptable to various particle size ranges. The S457 integrates seamlessly with bucket elevators, cooling beds, belt conveyors, and dust collectors, widely used in resin sand reclamation lines, sand recycling systems, pre-storage classification, and auxiliary foundry equipment—making it a key component in automated and intelligent sand handling systems.
Working Principle
Material Feeding
Feed material is evenly introduced via vibratory feeder, bucket elevator, or screw conveyor. Upon entering the screen box, it rapidly spreads under vibration.
Feed material is evenly introduced via vibratory feeder, bucket elevator, or screw conveyor. Upon entering the screen box, it rapidly spreads under vibration.
Linear Vibration Screening
The dual-shaft inertial exciter generates synchronized counter-rotating forces, creating a stable linear vibration path (vibration angle 30°–45°). Material moves in a projected motion—fine particles pass through the screen, while oversize particles travel toward the discharge end.
The dual-shaft inertial exciter generates synchronized counter-rotating forces, creating a stable linear vibration path (vibration angle 30°–45°). Material moves in a projected motion—fine particles pass through the screen, while oversize particles travel toward the discharge end.
Multi-Stage Screening & Discharge
Single- or double-deck screens available for 2–3 stage classification. Undersize (fine sand/dust) exits from lower outlet; oversize (coarse particles/contaminants) discharges from the end—enabling precise separation.
Single- or double-deck screens available for 2–3 stage classification. Undersize (fine sand/dust) exits from lower outlet; oversize (coarse particles/contaminants) discharges from the end—enabling precise separation.
Smart Control & Safety Protection
Control: PLC + HMI touchscreen for start/stop, monitoring, fault alarms
Safety interlocks: Emergency stop, vibration monitoring, blockage detection, motor overload protection
Optional: Remote IoT monitoring, runtime tracking, energy statistics, MES integration
Safety interlocks: Emergency stop, vibration monitoring, blockage detection, motor overload protection
Optional: Remote IoT monitoring, runtime tracking, energy statistics, MES integration
Key Features
High-Efficiency Linear Vibration, High Screening Accuracy
Frequency 45–60 Hz, adjustable exciting force (15–50 kN), screening efficiency ≥90%, capacity 30–80 t/h—suitable for dry and damp materials, anti-clogging, non-sticking.
Frequency 45–60 Hz, adjustable exciting force (15–50 kN), screening efficiency ≥90%, capacity 30–80 t/h—suitable for dry and damp materials, anti-clogging, non-sticking.
Robust Structure, Wear-Resistant
Q345B frame with stress-relief annealing; reinforced side plates for fatigue resistance; screen options: NM400, SS304/316L, or polyurethane composite—lifespan ≥6,000 hours.
Low Noise & Low Vibration Transmission
Rubber or air spring isolation system provides >92% vibration isolation, noise level ≤78 dB(A)—minimizing impact on plant structure.
Modular Quick-Change Design, Easy Maintenance
Quick-clamp or hydraulic tensioned screens—replacement in <25 minutes; external exciters for easy access; standardized fasteners and high part interchangeability.
Smart Control, User-Friendly Operation
PLC + 7" color HMI with manual/auto/test modes; self-diagnosis with Chinese fault alerts; expandable MODBUS RTU/PROFINET for integration with central control systems.
Eco-Friendly Sealed Design, Dust-Controlled
Fully enclosed screen box with sealed covers and viewing windows; optional top dust port for connection to pulse-jet collector, emissions <10 mg/m³—compliant with GB 16297.
Main Technical Specifications | |||
Screen Size (L×W) | 4500×1200 mm | 4500×1500 mm | 4500×2000 mm |
Effective Area | 5.4 m² | 6.75 m² | 9.0 m² |
Capacity | 30–50 t/h | 40–65 t/h | 50–80 t/h |
Vibration Frequency | 45–60 Hz | ||
Exciting Force | 15–35 kN | 25–45 kN | 35–50 kN |
Vibration Angle | 30°–45° Adjustable | 30°–45° Adjustable | 30°–45° Adjustable |
Decks | Single/Double | Single/Double | Single/Double |
Screen Type | Perforated / Woven / Polyurethane | Perforated / Woven / Polyurethane | Perforated / Woven / Polyurethane |
Main Motor | 2×5.5 kW | 2×7.5 kW | 2×11 kW |
Control System | PLC + 7" Color HMI | PLC + 7" Color HMI | PLC + 7" Color HMI |
Weight | 2,800 kg | 3,600 kg | 5,200 kg |
Protection Rating | IP55 (Control Cabinet IP65) | IP55 (Control Cabinet IP65) | IP55 (Control Cabinet IP65) |
Typical Applications
Cooling and classification in resin sand/green sand reclamation systems
Particle grading and dedusting before sand storage
Centralized screening and recovery of sand after shakeout
Precision control of reclaimed sand before muller feeding
Integrates with MES for production traceability and equipment health monitoring
Particle grading and dedusting before sand storage
Centralized screening and recovery of sand after shakeout
Precision control of reclaimed sand before muller feeding
Integrates with MES for production traceability and equipment health monitoring
