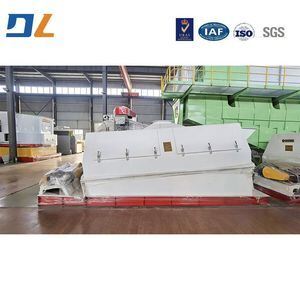

Automatic Used Sand Cooling Equipment for Sand Recycling Lines
Basic Properties
Certification:CE, RoHS, GS
Trading Properties
Minimum Order Quantity:1 Piece
Price:US $1,000-50,000 /
Specifications
| Model NO.: | DL | Control Type: | PLC |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Automatic Grade: | Automatic | Type: | Sand Casting |
| Stability: | High | Color: | Customizable |
| Equipment: | Combination Equipment | Types Of Available Sand: | Coated Sand. Resin Sand. Clay Sand |
| Transport Package: | Customizable | Specification: | Customizable |
| Trademark: | DL | Origin: | China |
| HS Code: | 8474802000 | Production Capacity: | 800 |
Product Description
Product Description
System Overview
The Used Sand Cooling & Reclamation System is an integrated solution designed to process high-temperature spent sand from casting processes. By utilizing physical (mechanical, pneumatic) or chemical (wet cleaning, thermal) methods, it removes binder films, dust, and impurities from the sand surface. The system cools the sand to a suitable temperature for mixing (typically ≤50°C), restoring its properties to "like-new" condition for reuse in molding.
Core Process Flow
A typical processing flow generally consists of the following four stages:
Crushing & Preheating: Preliminary crushing of large lumps; optional preheating via heat exchanger to save energy using waste heat.
Reclamation/Delamination: The core stage where binder films are removed from sand grains via mechanical friction, or high-temperature calcination.
Cooling: Cooling the high-temperature reclaimed sand to ambient temperature to prevent binder failure during mixing.
Screening & Dedusting: Separating sand of qualified granularity and removing fines/dust to ensure permeability of the molding sand.
Crushing & Preheating: Preliminary crushing of large lumps; optional preheating via heat exchanger to save energy using waste heat.
Reclamation/Delamination: The core stage where binder films are removed from sand grains via mechanical friction, or high-temperature calcination.
Cooling: Cooling the high-temperature reclaimed sand to ambient temperature to prevent binder failure during mixing.
Screening & Dedusting: Separating sand of qualified granularity and removing fines/dust to ensure permeability of the molding sand.
Main Equipment Types
A.
Spent Sand Reclaimer (Core Machine)
This is the key machine determining the quality of reclaimed sand.
Vibratory Reclaimer (S56 Series)
Principle: Driven by vibration motors, the sand moves spirally in the trough. Intense friction between sand grains removes the binder film.
Features: Combines crushing, reclamation, and conveying. Low sand breakage rate and high recovery rate.
Application: Reclamation of resin sand and sodium silicate sand.
Fluidized Bed Cooler (Auxiliary Reclamation)
Principle: Friction between sand grains during the boiling process provides a certain delamination effect.
Features: Extremely high cooling efficiency with uniform outlet sand temperature.
This is the key machine determining the quality of reclaimed sand.
Vibratory Reclaimer (S56 Series)
Principle: Driven by vibration motors, the sand moves spirally in the trough. Intense friction between sand grains removes the binder film.
Features: Combines crushing, reclamation, and conveying. Low sand breakage rate and high recovery rate.
Application: Reclamation of resin sand and sodium silicate sand.
Fluidized Bed Cooler (Auxiliary Reclamation)
Principle: Friction between sand grains during the boiling process provides a certain delamination effect.
Features: Extremely high cooling efficiency with uniform outlet sand temperature.
B.
Sand Cooling Equipment
If hot sand is not cooled, it causes moisture evaporation and binder failure during mixing.
Fluidized Bed Cooler
Advantages: Highest heat exchange efficiency. Outlet temperature stably controlled below 50°C. No moving parts, simple maintenance.
Cooling Drum
Types: Air-cooled drum or water-cooled drum.
Advantages: Simple structure, suitable for sticky or dusty materials.
If hot sand is not cooled, it causes moisture evaporation and binder failure during mixing.
Fluidized Bed Cooler
Advantages: Highest heat exchange efficiency. Outlet temperature stably controlled below 50°C. No moving parts, simple maintenance.
Cooling Drum
Types: Air-cooled drum or water-cooled drum.
Advantages: Simple structure, suitable for sticky or dusty materials.
System Advantages & Value
Cost Savings: Sand recovery rate reaches over 90%, significantly reducing costs for new sand procurement and waste disposal.
Environmental Compliance: Fully enclosed design with dedusting system; low dust emission concentration meets environmental regulations.
Improved Casting Quality: Stable sand temperature (constant temperature control) and clean molding sand are the foundation for producing high-quality castings.
Typical Configuration | |||
Resin Sand / Sodium Silicate Sand | Vibratory Reclaimer + Fluidized Bed | High-efficiency delamination, fast cooling, excellent grain shape. | |
Clay Sand (High-Density Line) | Muller Mixer + Fluidized/Cooling Drum | Powerful crushing, solves hot sand issues, ensures compactness. | |
Company Profile
Qingdao Dingli Machinery Co., Ltd.
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery equipment. It mainly manufactures equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand processing. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project and other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
Welcome to contact us~
