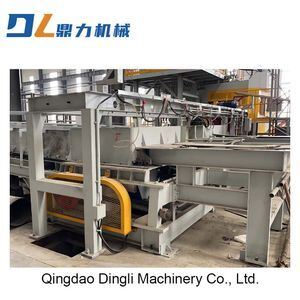

Belt Conveyor Cooling Conveying Line
| MOQ: | 1 Piece |
| Price: | US $2,000-5,000 / P |
Detail Information
Model NO.:
DL
Structure:
Belt Conveyor
Material:
Rubber
Material Feature:
Oil Resistant, Heat Resistant, Fire Resistant
Application:
Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition:
New
Type:
Inclined Slope Climbing Conveying Conveyor
Capacity:
10~100t/H
Belt Speed:
0.1~1.0 M/S
Control Mode:
Central Control Or Manual Control
Transport Package:
Export Packaging
Specification:
Customizable
Trademark:
Dingli
Origin:
China
HS Code:
8474802000
Production Capacity:
20
Product Description
Product Description
Sand Cooling Belt Conveyor
The Sand Cooling Belt Conveyor is a multifunctional equipment specially designed for the foundry industry, integrating sand conveying and cooling functions. It is mainly used for continuous cooling and transportation of high-temperature sand such as resin sand, sodium silicate sand, and coated sand after regeneration.
This equipment can reduce the sand temperature from 600–800°C to ≤50°C quickly, meeting the strict temperature requirements of downstream processes such as mixing, molding, and packaging.
Product Features
Equipped with multi-stage air or water cooling system to ensure rapid and efficient sand cooling.
Adopts high-strength heat-resistant conveyor belt, suitable for continuous production.
Optional temperature monitoring and automatic control system for real-time adjustment.
Modular and standardized design for easy installation, maintenance, and fast commissioning.
Equipped with enclosed cooling chamber and noise-reducing fans to reduce dust and noise.
Multiple safety protections including emergency stop, belt deviation alarm, and overload protection.
Main Process Flow
Feed material transportation
The high-temperature regenerated sand is sent to the feed inlet of the cooling belt conveyor by the elevator or the pneumatic conveying system.
Cooling treatment
During the transportation process, the sand material undergoes multiple stages of cooling through air-cooling or water-cooling systems, gradually reaching the set temperature.
Discharge transportation
The cooled sand material is conveyed from the discharge port to the subsequent processing equipment, such as vibrating screens, sand mixers or finished product storage areas.
The high-temperature regenerated sand is sent to the feed inlet of the cooling belt conveyor by the elevator or the pneumatic conveying system.
Cooling treatment
During the transportation process, the sand material undergoes multiple stages of cooling through air-cooling or water-cooling systems, gradually reaching the set temperature.
Discharge transportation
The cooled sand material is conveyed from the discharge port to the subsequent processing equipment, such as vibrating screens, sand mixers or finished product storage areas.
Tail gas treatment
The dust and hot air generated during the cooling process are treated by the dust removal system and then discharged in accordance with standards.
The dust and hot air generated during the cooling process are treated by the dust removal system and then discharged in accordance with standards.
Main Technical Specifications (Example) | |
Parameter | Specification |
Capacity | 10 to 100 tons per hour (depending on the configuration) |
Inlet Temperature | ≤800℃ |
Outlet Temperature | ≤50℃ |
Cooling Method | Air / Water Cooling (optional) |
Belt Width | 500~1200mm |
Belt Speed | 0.1~1.0 m/s |
Power Consumption | 15kW ~ 75kW (depending on the specific model) |
Control Mode | Central Control or Manual Control |
Weight | 8,000kg ~ 25,000kg |
Emission Standard | China GB or EU EN Standards |
Typical Applications
Resin Sand Regeneration Cooling Conveying
Coated Sand Thermal Regeneration Cooling
Sodium Silicate Sand Cooling Conveying Line
Supporting Equipment for Sand Handling System
Continuous Cooling Conveying for Automated Casting Production Line
Company Profile
Qingdao Dingli Machinery Co., LTD
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery and equipment. Mainly produce and process equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam, and sodium silicate sand. It is capable of undertaking various turnkey projects, including the design, manufacture, installation and commissioning of mechanical sand treatment. Our factory has strong technical force and advanced processing equipment. It has long-term and close technical cooperation relationships with many senior experts and scholars from domestic universities and research institutions. It can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through science and technology, prioritizing quality, continuous improvement, and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
Turnkey project of 20-180t/h mechanized clay sand processing production line and single-machine supporting equipment.
Turnkey project of mechanized production line for casting of condensed resin sand with an annual output of 1,000 to 20,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for hot processing coated sand with an annual output of 3,000 to 10,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for regenerating hot-coated sand with an annual output of 3,000 to 7,000 tons and single-machine supporting equipment.
Turnkey project of 5-15t/h sodium silicate mechanical production line and single-machine supporting equipment.
Turnkey project of 5-30t/h three-stage sand-making and drying equipment and single-machine supporting equipment.
5-40t/h lost foam casting complete set equipment turnkey project and single machine supporting equipment
All kinds of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, and environmental protection dust removal equipment.
Welcome to contact us ~
Our company adheres to the principles of promoting enterprise development through science and technology, prioritizing quality, continuous improvement, and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
Turnkey project of 20-180t/h mechanized clay sand processing production line and single-machine supporting equipment.
Turnkey project of mechanized production line for casting of condensed resin sand with an annual output of 1,000 to 20,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for hot processing coated sand with an annual output of 3,000 to 10,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for regenerating hot-coated sand with an annual output of 3,000 to 7,000 tons and single-machine supporting equipment.
Turnkey project of 5-15t/h sodium silicate mechanical production line and single-machine supporting equipment.
Turnkey project of 5-30t/h three-stage sand-making and drying equipment and single-machine supporting equipment.
5-40t/h lost foam casting complete set equipment turnkey project and single machine supporting equipment
All kinds of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, and environmental protection dust removal equipment.
Welcome to contact us ~
