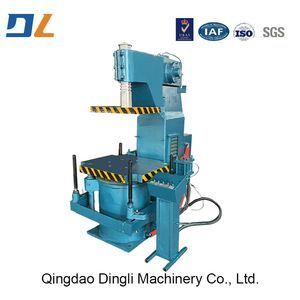

Casting Molding Machine for Foundry Applications
| MOQ: | 1 Set |
| Price: | US $15,000-70,000 |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
DL
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Semi-Automatic
Type:
Sand Casting
Squeeze Force:
0-50 KN(3-5 T)
Mold Hardness:
Hb 70-85
Air Pressure:
0.5-0.7 MPa
Air Consumption:
0.8-1.5 M³/Min
Specification:
Customizable
Trademark:
DL
Origin:
China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description
BengBeng Automatic Molding Machine
The BengBeng Automatic Molding Machine is a compact, user-friendly semi-automatic jolt-squeeze molding machine designed for small-to-medium batch and multi-variety casting production. Widely used in gray iron, ductile iron, and steel foundries, it combines high-frequency micro-jolting with pneumatic squeeze compaction to produce molds with sharp pattern definition and uniform sand hardness (HB 70–85). It dramatically reduces manual labor, improves molding efficiency, and enhances casting consistency—making it an ideal entry-level solution for workshops transitioning from hand molding to automation.
Key Features
Simple Operation, Quick Learning Curve
One-button control panel—complete a single flask mold in just four steps: place pattern → fill sand → compact → strip. Operators can work independently after 1–2 hours of training—ideal for small foundries with high staff turnover.
One-button control panel—complete a single flask mold in just four steps: place pattern → fill sand → compact → strip. Operators can work independently after 1–2 hours of training—ideal for small foundries with high staff turnover.
Hybrid Compaction for High-Quality Molds
High-frequency micro-jolting (≥300 strokes/min) pre-settles the sand, followed by 3–5 ton vertical pneumatic squeeze for final compaction—ensuring uniform mold hardness and minimizing expansion or erosion defects.
Robust Construction, Low Maintenance
Q345 welded frame with stress-relief annealing. Critical moving parts (guide rods, cylinders) protected by dust covers. No hydraulic system—only routine lubrication and air filtration required, resulting in minimal downtime.
Flexible & Easy to Integrate
Standard flask sizes from 600×500 mm to 1000×800 mm (customizable). Compatible with wooden, metal, or simple patterns. Can operate standalone or be integrated with conveyors and mold inverters for a basic molding line.
High Cost-Effectiveness, Fast ROI
Costs only 1/10–1/5 of a full-auto molding line. Daily output: 80–150 molds per shift. Payback period: 3–6 months through labor savings and reduced scrap—making it a smart investment for SME foundries.
Main Technical Specifications | |
Parameter | Value |
Model | BB-65 / BB-80 / BB-100 (Classified by table size) |
Table Size | 600×500 mm / 800×600 mm / 1000×800 mm |
Squeeze Force | 30–50 kN(3–5 t) |
Jolt Frequency | ≥300 per minute |
Mold Hardness | HB 70–85 |
Air Pressure | 0.5–0.7 MPa |
Air Consumption | 0.8–1.5 m³/min |
Motor Power | 3–5.5 kW |
Weight | 1.2–2.8 t |
Typical Applications
Ideal for 5–200 kg medium/small castings, such as:
Agricultural machinery: plowshares, gear housings, brackets
Construction equipment: valve bodies, fittings, bases
Municipal castings: manhole covers, grates, bollard bases
General machinery: pump casings, motor end shields, flanges
Typical users include township foundries, maintenance workshops, vocational training centers, and startup casting enterprises.
Construction equipment: valve bodies, fittings, bases
Municipal castings: manhole covers, grates, bollard bases
General machinery: pump casings, motor end shields, flanges
Typical users include township foundries, maintenance workshops, vocational training centers, and startup casting enterprises.
Company Profile
Qingdao Dingli Machinery Co., Ltd.
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery equipment. It mainly manufactures equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand processing. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project and other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
