Industrial V Process Casting Sand Box for Foundries
| MOQ: | 1 Set |
| Price: | US $7,000-15,000 / |
Detail Information
Certification
CE, RoHS, GS
Model NO.:
DL
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Flask Type:
Cope / Drag / Universal
Bottom Plate Open Area:
≥25%
Surface Treatment:
Sandblasted + Epoxy Wear-Resistant Coating (304 St
Typical Service Life:
≥10,000 Molding Cycles
Transport Package:
Customizable
Specification:
Customizable
Trademark:
DL
Origin:
China
HS Code:
8474802000
Production Capacity:
100
Product Description
Product Description

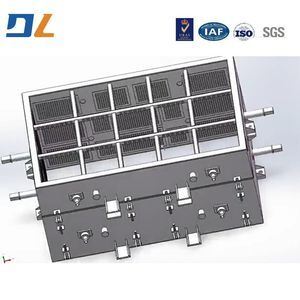

V-Process Dedicated Flask
The V-Process Dedicated Flask is a core tooling component specifically engineered for Vacuum Sealed Molding (V-Process). Featuring a high-rigidity frame, perforated metal plate (or mesh) bottom, and uniform vacuum distribution system, it uses negative pressure (typically -0.04 to -0.06 MPa) to compact dry sand around a plastic film-covered pattern—enabling binder-free, high-accuracy molds with excellent surface finish. Lightweight yet robust, with superior sealing and even vacuum draw, it is ideal for high-quality steel, ductile iron, and aluminum castings in jobbing or medium-volume production.
Key Design Features
High Rigidity & Lightweight Construction
Welded from Q345B steel, stress-relieved by annealing—deformation ≤0.1 mm/m. Optimized for strength-to-weight ratio.
Uniform Vacuum Distribution
Perforated plate with ≥25% open area + internal plenum chamber + multi-port vacuum inlets ensure consistent compaction across the entire mold.
Rapid Sealing & Docking
Silicone gasket + quick-clamp system enables <30-second airtight connection to molding table or rollover machine.
Modular & Standardized
Standard sizes from 800×600 mm to 3000×2000 mm; cope-drag pairs available. Optional RFID tags for smart foundry traceability.
Long Service Life
Wear-resistant epoxy coating or stainless cladding on critical surfaces—service life ≥10,000 cycles.
Welded from Q345B steel, stress-relieved by annealing—deformation ≤0.1 mm/m. Optimized for strength-to-weight ratio.
Uniform Vacuum Distribution
Perforated plate with ≥25% open area + internal plenum chamber + multi-port vacuum inlets ensure consistent compaction across the entire mold.
Rapid Sealing & Docking
Silicone gasket + quick-clamp system enables <30-second airtight connection to molding table or rollover machine.
Modular & Standardized
Standard sizes from 800×600 mm to 3000×2000 mm; cope-drag pairs available. Optional RFID tags for smart foundry traceability.
Long Service Life
Wear-resistant epoxy coating or stainless cladding on critical surfaces—service life ≥10,000 cycles.
Technical Specifications | |
Applicable Process | V-Process (Vacuum Sealed Molding) |
Flask Type | Cope / Drag / Universal |
Standard Size Range | 800×600 mm to 3000×2000 mm |
Max Load Capacity | 1 – 15 tons (including sand and casting) |
Operating Vacuum Level | -0.04 to -0.06 MPa |
Bottom Plate Open Area | ≥25% |
Main Body Material | Q345B high-strength low-alloy steel |
Surface Treatment | Sandblasted + epoxy wear-resistant coating (304 stainless steel edge optional) |
Sealing Method | Silicone gasket + mechanical quick-clamp system |
Typical Service Life | ≥10,000 molding cycles |
Optional Features | RFID tag, lifting alignment pins, temperature sensor port |
Typical Applications
Heavy Machinery: Large valves, pump housings, marine fittings (steel castings)
Rail Transit: Bogie side frames, bolsters, gear cases (ductile iron)
Energy Equipment: Wind turbine hubs, nuclear supports, hydro guide vanes
Precision Manufacturing: Aerospace GSE, machine tool bases (aluminum)
Rail Transit: Bogie side frames, bolsters, gear cases (ductile iron)
Energy Equipment: Wind turbine hubs, nuclear supports, hydro guide vanes
Precision Manufacturing: Aerospace GSE, machine tool bases (aluminum)
