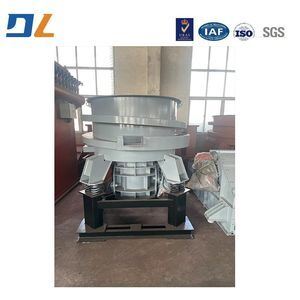

High-Efficiency Multi-Function Vibrating Sand Regenerator
| MOQ: | 1 Piece |
| Price: | US $8,500-25,000 / |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
S56l
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Capacity:
30 - 120 T/H
Mesh Size:
0.8-8 Mm
Frequency:
5 - 15 Hz
Amplitude:
3 - 8 Mm
Emission:
≤10 Mg/M³
Transport Package:
Export Packaging
Specification:
Customizable
Trademark:
DL
Origin:
Qingdao, China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description
S56L Series Multi-Function Vibratory Reclaimer
The S56L Series Multi-Function Vibratory Reclaimer is a high-efficiency sand reclamation system engineered for foundries to crush, screen, de-dust, and pre-cool reclaimed green sand, resin-bonded sand, or sodium silicate sand in a single unit. Featuring a two-mass elastic vibration structure, multi-stage composite screens, and air-solid separation technology, it produces regenerated sand with intact grain shape, clay content ≤0.3%, and loss on ignition (LOI) ≤1.5%. The sand is suitable for direct reuse in high-precision molding lines, achieving a >95% sand reclamation rate—dramatically reducing new sand consumption and landfill waste for sustainable casting.
Working Principle
Infeed: Lumpy reclaimed sand (with metal fragments, sand agglomerates) enters the reclaimer.
Deagglomeration: High-frequency vibration and impact against internal baffles break lumps into individual grains.
Multi-Stage Screening: 2–3 screen decks (e.g., 6×6 mm / 1×1 mm) separate:
• Usable reclaimed sand
• Oversize contaminants (tramp metal, chills)
• Fines (<0.15 mm)
Dust Extraction: Built-in negative-pressure duct removes fines via cyclone + baghouse—emissions ≤10 mg/m³.
Discharge: Clean sand conveyed back to muller; contaminants and dust collected separately.
Deagglomeration: High-frequency vibration and impact against internal baffles break lumps into individual grains.
Multi-Stage Screening: 2–3 screen decks (e.g., 6×6 mm / 1×1 mm) separate:
• Usable reclaimed sand
• Oversize contaminants (tramp metal, chills)
• Fines (<0.15 mm)
Dust Extraction: Built-in negative-pressure duct removes fines via cyclone + baghouse—emissions ≤10 mg/m³.
Discharge: Clean sand conveyed back to muller; contaminants and dust collected separately.
Key Technical Features
All-in-One Design – Lower CAPEX & Footprint
Combines crushing, screening, dedusting, and cooling in one unit—replacing conventional "crusher + screen + collector" setups. Reduces equipment count by 50% and saves floor space.
Combines crushing, screening, dedusting, and cooling in one unit—replacing conventional "crusher + screen + collector" setups. Reduces equipment count by 50% and saves floor space.
Two-Mass Low-Transmission Vibration – Stable Operation
Active and isolated masses linked by rubber springs transmit ≤10% dynamic load to foundation—no massive concrete base required.
Modular Screen Decks – Process-Flexible
Screen apertures and layers easily swapped for green sand, furan, or alkaline phenolic systems—custom grading on demand.
Low-Damage Reclamation – Preserves Sand Integrity
No high-speed rotors—minimizes grain fracture. Regenerated sand angularity coefficient ≤1.35, enhancing permeability and green strength.
Smart Control & Eco-Certified
PLC manages vibration, airflow, and discharge. Fully enclosed with dual-stage dust collection—emissions ≤10 mg/m³, compliant with GB 39726 and EU BREF.
PLC manages vibration, airflow, and discharge. Fully enclosed with dual-stage dust collection—emissions ≤10 mg/m³, compliant with GB 39726 and EU BREF.
Main Technical Specifications | |
Parameter | Value |
Model | S56L-1500 / S56L-2000 / S56L-2500 |
Capacity | 30 – 120 t/h |
Sand Type | Clay sand, furan resin sand, alkaline phenolic sand, sodium silicate sand |
Screen Decks | 2-3 floors (optional) |
Mesh Size | 0.8–8 mm |
Frequency | 5 – 15 Hz |
Amplitude | 3 – 8 mm |
Air Volume | 5000 – 12000 m³/h |
Emission | ≤10 mg/m³ |
Control | PLC + touch screen, supporting remote monitoring |
Typical Applications
Automotive Foundry: Green sand reclamation for engine blocks/heads—>95% reuse
Pipe & Valve Plant: Furan sand recycling for ductile iron fittings—cuts new sand cost
Steel Casting Shop: Sodium silicate sand processing—minimizes landfill
Green Demonstration Line: Core unit in "zero-waste sand" closed-loop system
Pipe & Valve Plant: Furan sand recycling for ductile iron fittings—cuts new sand cost
Steel Casting Shop: Sodium silicate sand processing—minimizes landfill
Green Demonstration Line: Core unit in "zero-waste sand" closed-loop system
