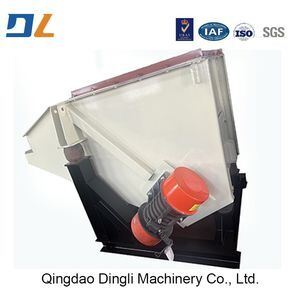

S33 Industrial Sand Block Crusher for Casting Industry
| MOQ: | 1 Piece |
| Price: | US $7,000-15,000 / |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
S33
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Discharge Size:
≤3 Mm
Rotor Speed:
750-900 Rpm
Grate Gap:
5-15 Mm
Protection Rating:
IP55
Transport Package:
Export Packaging
Specification:
Customizable
Trademark:
DL
Origin:
China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description
Product Description of S33 Series Sand Lump Crusher
The S33 Series Sand Lump Crusher is a high-efficiency dry crushing machine designed for foundry sand reclamation systems, suitable for breaking up compacted molding sand from green sand, furan resin sand, and alkaline phenolic sand processes. Utilizing a dual-rotor shear crushing + adjustable discharge grate system, the S33 rapidly reduces sand lumps up to 300 mm in diameter to ≤3 mm through combined shear, impact, and compression forces—significantly improving efficiency and stability in downstream screening, magnetic separation, and sand regeneration.
Constructed with a Q345B high-strength steel welded frame, stress-relieved by full annealing, the machine offers excellent rigidity and impact resistance. The crushing chamber is lined with NM500 high-hardness wear-resistant steel, and hammers are made of the same material—ensuring long life and low maintenance costs. The S33 integrates seamlessly with vibratory shakeouts, bucket elevators, cooling beds, and linear screens—widely used in resin sand reclamation lines, pre-treatment before sand storage, temperature regulation systems, and automated sand handling lines, serving as a critical pre-processing unit for efficient sand reuse.
Working Principle
Material Feeding
Large sand clumps from the shakeout or belt conveyor are evenly fed into the crushing chamber via the inlet, preventing blockage and uneven loading.
Large sand clumps from the shakeout or belt conveyor are evenly fed into the crushing chamber via the inlet, preventing blockage and uneven loading.
Dual-Rotor Shear Crushing
The machine features two counter-rotating rotors, each equipped with multiple rows of high-wear-resistant hammers. Sand lumps are subjected to intense shear, impact, and compression between the high-speed hammers (peripheral speed 28–32 m/s) and fixed breaker plates—rapidly reducing them to fine particles.
The machine features two counter-rotating rotors, each equipped with multiple rows of high-wear-resistant hammers. Sand lumps are subjected to intense shear, impact, and compression between the high-speed hammers (peripheral speed 28–32 m/s) and fixed breaker plates—rapidly reducing them to fine particles.
Particle Size Control & Discharge
Crushed material exits through an adjustable discharge grate (5–15 mm gap), ensuring uniform and controlled particle size (typically ≤3 mm). Oversized particles are re-crushed until they meet the specification.
Crushed material exits through an adjustable discharge grate (5–15 mm gap), ensuring uniform and controlled particle size (typically ≤3 mm). Oversized particles are re-crushed until they meet the specification.
Smart Control & Safety Protection
Control: PLC + HMI touchscreen for start/stop, monitoring, fault alarms
Safety interlocks: Emergency stop, rotor vibration monitoring, overload protection, power-off when cover opened
Optional: Automatic reverse on blockage, remote IoT monitoring, runtime tracking, energy statistics
Safety interlocks: Emergency stop, rotor vibration monitoring, overload protection, power-off when cover opened
Optional: Automatic reverse on blockage, remote IoT monitoring, runtime tracking, energy statistics
Key Features
High-Efficiency Dual-Rotor Crushing, Fine Output
Counter-rotating rotors provide high crushing efficiency, capacity 20–60 t/h, output ≤3 mm—meeting stringent fineness requirements for sand regeneration systems.
Counter-rotating rotors provide high crushing efficiency, capacity 20–60 t/h, output ≤3 mm—meeting stringent fineness requirements for sand regeneration systems.
Robust Structure, Wear-Resistant
Q345B frame with fatigue-resistant design; hammers and liners made of NM500 steel, hardness HRC58–62, lifespan ≥5,000 hours; overall design life ≥10 years.
Adjustable Grate, Controllable Size
Discharge grate gap 5–15 mm adjustable to meet different process needs; quick-change design for easy maintenance.
Modular Design, Easy Maintenance
Top hydraulic-opening cover provides ample access; quick-change hammer system—replacement in <1 hour; standardized parts with high interchangeability.
Smart Control, Stable Operation
PLC + 7" color HMI with manual/auto/test modes; automatic reverse on blockage to prevent damage; expandable MODBUS RTU/PROFINET for MES integration.
Eco-Friendly, Low Noise, Dust-Controlled
Fully enclosed crushing chamber with sealed inlet/outlet;
Main Technical Specifications | |||
Max Feed Size | ≤300 mm | ≤300 mm | ≤300 mm |
Discharge Size | ≤3 mm Adjustable | ≤3 mm Adjustable | ≤3 mm Adjustable |
Capacity | 20–40 t/h | 30–50 t/h | 40–60 t/h |
Rotor Speed | 750–900 rpm | 750–900 rpm | 750–900 rpm |
Hammer Count | 24 pcs | 32 pcs | 40 pcs |
Main Motor | 2×15 kW | 2×22 kW | 2×30 kW |
Grate Gap | 5–15 mm Adjustable | 5–15 mm Adjustable | 5–15 mm Adjustable |
Control System | PLC + 7" Color HMI | PLC + 7" Color HMI | PLC + 7" Color HMI |
Weight | 3,800 kg | 5,200 kg | 7,000 kg |
Protection Rating | IP55 (Control Cabinet IP65) | IP55 (Control Cabinet IP65) | IP55 (Control Cabinet IP65) |
Typical Applications
Pre-crushing of sand lumps after shakeout in resin/green sand lines
Primary crushing unit in sand reclamation lines
Primary crushing unit in sand reclamation lines
Particle size control before cooling bed or screening machine
De-lumping of stored sand after long-term storage
Integrates with MES for equipment monitoring and production traceability
