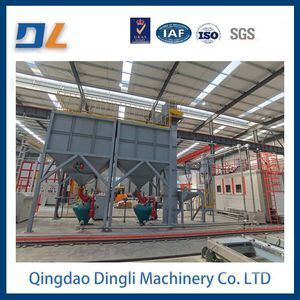

Y935 Sand Powder Particle Material Pneumatic Conveying System

I. features and USES

1. Features:

The device USES the kinetic energy of compressed air to transport materials, which is a fluidization transport equipment.Its power consumption is low, productivity is high, operation is simple, can realize multi-point discharge, and a set of complete sealing device and dust removal system;The device is highly automatic and can be controlled centrally in the control room.

2. USES:

This device is suitable for conveying coal powder, clay powder, graphite powder, cement, flour, etc., and also can be used for conveying various powder materials in medicine, chemical industry, metallurgy, grain and other industries.Conveying material required temperature does not exceed 50 ºC, water content below 2.5%.

Technical specifications

Serial number item data

Model 1 is different according to the effective load capacity (m3) of the sender, Y952A, B 0.2

Y953A, 0.3 B

Y954A, 0.4 B

Working pressure (Mpa) 0.6

3. Compressed air consumption (m3/t

4 conveying capacity (T/H) 6 ~ 8

Transportation distance (m) Smax is less than or equal to 100

6 conveying height (m) Hmax is less than or equal to 15

The diameter of feeding tube (mm) is less than 89 x 4

The mixture concentration ratio of material/gas is generally 50 ~ 60

Up to 75

Gas storage tank capacity (m3) > 2

The device is designed according to 4 discharging points, and the number of unloading points can be determined according to the needs of users.

The control power supply adopts three-phase alternating current 380V voltage 50HZ frequency power supply. The control circuit and display circuit are reduced to 220V and 63V power supply by the transformer supplied by the machine.

Power (kW) 3.6

Unit weight (T) 6
