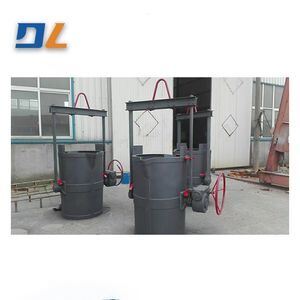

86 Pouring Iron Casting Ladle

quality 86 Pouring Iron Casting Ladle factory
quality 86 Pouring Iron Casting Ladle factory
quality 86 Pouring Iron Casting Ladle factory
quality 86 Pouring Iron Casting Ladle factory
quality 86 Pouring Iron Casting Ladle factory
quality 86 Pouring Iron Casting Ladle factory
quality 86 Pouring Iron Casting Ladle factory

Basic Properties

Certification:CE, RoHS, GS, ISO9001

Trading Properties

Minimum Order Quantity:1 Piece
Price:US $500-2,000 / Pie
Specifications
Control Type: PLC Customized: Customized
Condition: New Automatic Grade: Automatic
Type: Sand Casting Transport Package: International Standard Or Customized
Specification: According To Equipment Trademark: Dingli
Origin: Qingdao, China HS Code: 8474802000
Production Capacity: 2000
Product Description
86 Pouring Iron Casting Ladle 086 Pouring Iron Casting Ladle 186 Pouring Iron Casting Ladle 286 Pouring Iron Casting Ladle 386 Pouring Iron Casting Ladle 486 Pouring Iron Casting Ladle 586 Pouring Iron Casting Ladle 6A, use

Molten iron ladle is used for casting shop casting operation, after receiving molten iron in front of the furnace, it is transported to the casting place by car for pouring.

Two, the main technical parameters and dimensions

1, hanging bag form, two-way rotary type.

2, reducer form, double worm gear pair transmission.

3, speed ratio (such as chart).

4. Dimensions (such as charts).

Three, characteristics

1, a reasonable choice of rotary center, easy to operate, after pouring can be basically self-replicating.

2, the use of double worm gear transmission. Although the manufacturing requirements are high, the transmission is flexible and reversible.

3. The suspender adopts forged parts, which are more reliable and safe than steel plate welding parts.

4, the inclusion steel plate is thicker, the bottom structure of the inclusion adopts taper, bottom hoop, welding combined with triple insurance, that is, to prolong the service life, but also to ensure the safety of operators.

5, the main body and the boom, reducer and handwheel, are equipped with a chain card can be locked at any time.

6, two trunnion and hanger rod are equipped with self-aligning bearing, good consistency.
specifications
(t)		 Barrel mouth diameter
(mm)		 Barrel height
(mm)		   XX(mm)
Overall dimensions
Length X width X height (mm)
TB-0.5 592 608 63 1080X720X1343
TB-0.75 660 670 63 1145X780X1373
TB-1 715 718 63 1200×845×1433
TB-1.5 830 840 69 1310X900X1835
TB-2 892 922 69 1368×1030×1875
TB-2.5   980 69 1480X1100X2002
TB-3 1032 1030 82 1560X1172X2145
TB-4 1135 1056 82 1656χ1280χ2178
TB-5 1230 1238 94 1820X1380X2503
TB-6 1292 1320 94 1880χ1452χ2542
TB-7 1352 1390 94 1930X1512×2625
TB-8 1426 1462 320 2175χ1626χ2968
TB-10 1546 1590 320 2285×1766×337128
TB-12 1645 1690   2410χ1886χ3315
TB-15 1765 1785 400 2530χ2065χ3418
 FAQ:
Q1. Where is your factory? How can I visit it?

A : Our factory is located in Qingdao City, Shandong Province, China. You can fly to Qingdao Jiaodong Airport and we will pick you up.
Q2. Do you produce machine specific parameters according to samples?
A: Yes, we produce the machine you want according to your sample or technical drawing. Usually a machine has different sizes and technical requirements, such as sand mixing equipment, screening equipment, cooling equipment, etc.
Q3. What is your sample service?
A: If we have the ready-made machine, we can provide the sample test that the customer wants to produce, but the customer must pay the sample shipping cost.

Q4. What is the MOQ for your machine?
A: Usually our MOQ is 1 set.
Q5. Do you test all machines before delivery?
 A: Yes, we do 100% testing before delivery.
Q6: How do you keep our business in a good long-term relationship?
Answer: 1. We maintain good quality and competitive prices to ensure our customers benefit;
2. We respect every customer as our friend, we sincerely do business with them and make friends,
no matter where they come from.
Qingdao Dingli Machinery Co., Ltd.
1. We are one of the manufacturers of metal casting machinery in China.


2. We produce clay sand processing equipment, resin sand recovery equipment, coated sand making equipment, coated sand regeneration equipment, sand drying equipment, dust removal equipment, conveying equipment, cooling equipment, magnetic separation equipment, screening equipment, mixing equipment Sand machine, etc.


3. Our machines are widely used to produce and process casting parts, metal castings, plumbing fittings, auto parts, brass, aluminum, zinc, cast iron production line valves, etc. Please contact us!


4.We have professional technical support and after-sales service. Has the whole line of casting machines, good quality, reasonable price and fashionable design.
Qingdao Dingli Machinery Co., Ltd. is an enterprise specializing in the production of foundry machinery and equipment. It mainly produces foundry clay sand, resin sand, coated sand, wet sand drying, lost foam, and water glass sand processing equipment. It can undertake various mechanized sand processing equipment. Design, manufacture, installation, commissioning and other turnkey projects. The factory has strong technical force and excellent process equipment. It has a long-term close technical cooperation relationship with senior experts and scholars from many domestic universities and scientific research institutions, and can provide users with excellent performance, reliable products and satisfactory services.

The company takes science and technology to develop the enterprise, quality is the foundation, continuous improvement, and customer satisfaction is the purpose.

The company mainly undertakes the following projects:
20-180t/h mechanized clay sand sand processing production line turnkey project and stand-alone supporting equipment.
Annual output of 1000-20000t castings condensed resin sand mechanized production line turnkey project and stand-alone supporting equipment.
With an annual output of 3000-10000t thermal-coated sand making complete set of equipment turnkey project and stand-alone supporting equipment.
With an annual output of 3000-7000t thermal coated sand regeneration complete equipment turnkey project and stand-alone supporting equipment.
5-15t/h water glass mechanized production line turnkey project and stand-alone supporting equipment.
5-30t/h three-pass sand drying equipment turnkey project and stand-alone supporting equipment.
5-40t/h lost foam complete set of equipment turnkey project and stand-alone supporting equipment.
Various types of clay sand horizontal molding machine, vertical molding machine.
Various types of shot blasting equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
