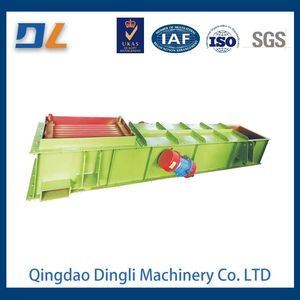

Film - Coated Sand Screen Cooling Integrated Machine
| MOQ: | 1 Piece |
| Price: | US $5,000 / Piece |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
T1186
Control Type:
PLC
Customized:
Non-Customized
Condition:
New
Automatic Grade:
Manual
Type:
Special Casting
Transport Package:
Wu
Specification:
500
Trademark:
Dingli
Origin:
Qingdao
Product Description
It includes vibrator, spring, support, bottom plate, top plate, vibrating motor, crushing tank, fan seat, centrifugal fan and canvas joint.The centrifugal fan is connected with the front end and left side of the vibration body through canvas connection sleeve.The crushing groove is installed on the upper front end of the vibration body and the upper back end of the vibration body is installed on the upper bottom plate.The bottom plate is connected with the bottom of the vibration body and is sealed with asbestos rope;The vibration motor is installed on the side of the vibration body;The spring is installed on the support, and the vibration body is placed on the spring;Front and rear supports;There are four springs and two front and rear supports.Two vibration motors;It is located on both sides of the vibration body.The crushing trough is provided with a sieve body;The vibration body is provided with a large area of water package.The utility model relates to a film coated sand long body cooling screen, which can be directly bagged after being separated and cooled by a screen, so as to improve the production efficiency, reduce the labor intensity and reduce the production cost.
