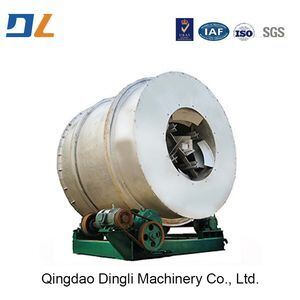

High-Efficiency Three-Pass Drying Sand Drum

The S62 Series Triple-Pass Drying System is a high-efficiency, energy-saving sand drying equipment designed for modern foundry sand handling systems. It is widely used for moisture removal and temperature control of wet or high-temperature sands such as resin sand, coated sand, and regenerated sand.

Featuring a unique triple-pass drum structure and counter-flow hot gas design, it enables multi-stage heat recovery, significantly improving thermal efficiency and reducing energy consumption. The S62 series is an ideal solution for precise sand conditioning and continuous production in green foundries.

Triple concentric drums with "S"-shaped sand flow extend residence time and enhance heat transfer, achieving over 85% thermal efficiency.

Reduces fuel consumption by 30–40% compared to conventional single-drum dryers, lowering operating costs.

Equipped with multi-point temperature sensors and PLC control for precise moisture control (0.1–0.3%).

Compact design reduces footprint by up to 60% compared to conventional dryers.

Integrated dust removal system ensures emissions ≤20mg/m³; optional VOC treatment available.

PLC+HMI control with fault diagnosis, data logging, and remote monitoring for smart operation.

Drying of regenerated resin sand

Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery. It mainly manufactures and processes equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand treatment. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life and achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project.
Various shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
