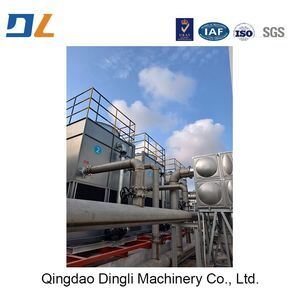

Industrial High-Temperature Cooling Tower for Casting Lines
| MOQ: | 1 Set |
| Price: | US $10,000-50,000 |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
DL
Control Type:
PLC
Customized:
Customized
Condition:
Used
Automatic Grade:
Automatic
Type:
Sand Casting
Fill Material:
PVC
Color:
Customizable
Control:
PLC
Cooling Capacity:
Depends On The Specific Circumstances
Specification:
Customizable
Trademark:
DL
Origin:
China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description
Product Description of Foundry High-Temperature Cooling Tower
Specifically designed for the foundry industry, our High-Temperature Cooling Tower handles hot water from electric arc furnaces, cupolas, medium-frequency induction heaters, and open/closed-loop cooling systems. Capable of reliably cooling water with inlet temperatures up to 65–85°C, discharging at 35–42°C—meeting continuous cooling demands for molding machines, melting furnaces, hydraulic systems, and air compressors.
Featuring high-temp FRP structure + specialized high-temp fill media + dual-layer stainless steel coil (closed-type) + intelligent VFD control, it ensures long-term reliability in the harsh foundry environment—high temperature, humidity, dust, and poor water quality. An ideal heat dissipation solution for energy savings and extended equipment life.
Key Features & Advantages
Extreme High-Temperature Resistance, Safe & Reliable
FRP shell: High-temp unsaturated polyester + multi-layer E-glass, continuous use ≥90°C, short-term 100°C thermal shock
Fill media: Modified PP or high-temp PVC, softening point ≥95°C—resists deformation and collapse
Metal parts: Hot-dip galvanized + epoxy coating or 304/316L stainless steel—prevents high-temp corrosion
High-Efficiency Heat Transfer, Close to Wet-Bulb Limit
High-temp fill with large spacing prevents clogging and ensures smooth airflow
Optimized water distribution with anti-clogging nozzles—uniform spray, thermal performance meets NB/T 35037 Class I
Closed-type: Dual-layer 316L stainless steel coil, 1.6 MPa pressure rating, chloride corrosion resistant, lifespan ≥10 years
Intelligent Control, Energy Savings
Optional VFD fans + multi-stage control—automatically adjusts airflow based on water temperature, saving 20–40% energy
Integrated temperature sensors + PLC control—supports local/remote monitoring, fault alarms, runtime tracking, energy stats
Compatible with MES/SCADA for data integration and centralized management
Anti-Corrosion & Anti-Scaling, Easy Maintenance
Closed-type: Full closed-loop circulation—prevents contamination and scaling, ideal for softened/pure water systems
Open-type: Optional automatic blowdown + water quality monitoring—reduces water treatment cost
Modular design—quick replacement of fill, nozzles, fans—maintenance time reduced by 50%
FRP shell: High-temp unsaturated polyester + multi-layer E-glass, continuous use ≥90°C, short-term 100°C thermal shock
Fill media: Modified PP or high-temp PVC, softening point ≥95°C—resists deformation and collapse
Metal parts: Hot-dip galvanized + epoxy coating or 304/316L stainless steel—prevents high-temp corrosion
High-Efficiency Heat Transfer, Close to Wet-Bulb Limit
High-temp fill with large spacing prevents clogging and ensures smooth airflow
Optimized water distribution with anti-clogging nozzles—uniform spray, thermal performance meets NB/T 35037 Class I
Closed-type: Dual-layer 316L stainless steel coil, 1.6 MPa pressure rating, chloride corrosion resistant, lifespan ≥10 years
Intelligent Control, Energy Savings
Optional VFD fans + multi-stage control—automatically adjusts airflow based on water temperature, saving 20–40% energy
Integrated temperature sensors + PLC control—supports local/remote monitoring, fault alarms, runtime tracking, energy stats
Compatible with MES/SCADA for data integration and centralized management
Anti-Corrosion & Anti-Scaling, Easy Maintenance
Closed-type: Full closed-loop circulation—prevents contamination and scaling, ideal for softened/pure water systems
Open-type: Optional automatic blowdown + water quality monitoring—reduces water treatment cost
Modular design—quick replacement of fill, nozzles, fans—maintenance time reduced by 50%
Low-Noise & Eco-Friendly Design
Low-noise axial fans with silencer shroud and vibration isolators—standard ≤68 dB(A), low-noise ≤62 dB(A)
High-efficiency drift eliminators (drift loss <0.001%)—water-saving, compliant with GB 12348
Low-noise axial fans with silencer shroud and vibration isolators—standard ≤68 dB(A), low-noise ≤62 dB(A)
High-efficiency drift eliminators (drift loss <0.001%)—water-saving, compliant with GB 12348
Main Technical Specifications | |||
Model number | HT-200 | HT-500 | HT-C-120 |
Model | Open High-Temp Tower | Open High-Temp Tower | Closed High-Temp Tower |
Cooling Capacity (m³/h) | 200 | 500 | 120 |
Inlet Temp. | 75°C | 80°C | 85°C |
Outlet Temp. | 38°C | 40°C | 42°C |
ΔT | 37°C | 40°C | 43°C |
Wet-Bulb Temp. | 28°C | 27°C | 26°C |
Fan Power | 15 kW | 2×18.5 kW | 11 kW |
Pump Power | – | – | 7.5 kW |
Shell Material | FRP | FRP | Galvanized Steel + 316L Coil |
Fill Material | Resistant to high temperatures PP | Resistant to high temperatures PVC | – |
Coil Material | – | – | 316L Stainless Steel |
Control | Manual / VFD optional | PLC + HMI / | Intelligent Control Cabinet |
Noise Level | ≤68 dB(A) | ≤70 dB(A) | ≤72 dB(A) |
Typical Applications in Foundries
MF/FF Induction Furnaces: Cooling power cabinets, capacitors, induction coils
Cupolas & Arc Furnaces: Jacket cooling, waste heat recovery, extended furnace life
Hydraulic & Lubrication Stations: Prevents oil overheating and system failure
Air Compressors & Vacuum Pumps: Improves compression efficiency, reduces energy use
Molding & Core-Making Equipment: Ensures continuous operation, improves cycle time
Cupolas & Arc Furnaces: Jacket cooling, waste heat recovery, extended furnace life
Hydraulic & Lubrication Stations: Prevents oil overheating and system failure
Air Compressors & Vacuum Pumps: Improves compression efficiency, reduces energy use
Molding & Core-Making Equipment: Ensures continuous operation, improves cycle time
Company Profile
Qingdao Dingli Machinery Co., Ltd.
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery equipment. It mainly manufactures equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand processing. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project and other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
Welcome to contact us~
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coating sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project and other types of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
Welcome to contact us~
