Fluidized Bed Cooling System for Material Temperature Control
| MOQ: | 1 Piece |
| Price: | US $7,000-30,000 / |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
FTB
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Capacity:
Depending On Sand Temp
Outlet Sand Temp:
Adjustable
Fan Power:
VFD-Controlled
Dimensions:
Customized By Model
Transport Package:
Export Packaging
Specification:
Customization
Trademark:
Dingli
Origin:
China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description

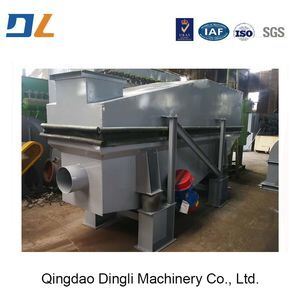

Product Description of FTB Fluidized Bed Cooler
The FTB Fluidized Bed Cooler is a high-efficiency, energy-saving, and eco-friendly sand cooling system based on the fluidization principle, specifically designed for rapid cooling of hot resin sand, reclaimed sand, or coated sand in foundries. Clean cold air passes upward through a perforated plate, suspending sand particles in a "boiling" state within the bed, enabling full, uniform, and efficient heat exchange between sand and air. It rapidly cools sand from 100–120°C down to ≤45°C, meeting process requirements for subsequent mixing, molding, or storage.
The fully enclosed design combined with a pulse cartridge dust collector prevents dust leakage during cooling—ensuring compliance with national emission standards (≤5 mg/m³). The cooled sand exhibits stable temperature, uniform moisture, and excellent flowability, significantly improving mixing quality and molding efficiency. It is a core cooling component in the sand handling system of modern green foundries.
Working Principle
Feeding Stage
Hot sand enters the fluidized bed via feed chute or pneumatic conveying, with sand layer thickness controlled by an automatic adjustable weir to ensure uniform distribution.
Fluidized Cooling Stage
High-pressure cold air, driven by a centrifugal fan + air filter, enters the plenum chamber and passes through a perforated distributor plate (or ceramic plate), suspending sand particles in a fluidized "boiling" state. Full contact between sand and air enables efficient heat transfer, with heat carried away by the air.
Discharge & Dust Removal Stage
Cooled sand continuously discharges via overflow weir or adjustable gate to downstream conveyors or silos. Dust-laden exhaust gas is purified through an upper dust chamber + cartridge filter before emission, with dust recovery >99.5%.
Intelligent Air & Temperature Control
Equipped with temperature sensors (inlet/outlet) + differential pressure sensors + VFD-controlled fan, enabling automatic airflow adjustment for stable, controllable sand temperature and energy efficiency.
Key Features
High Cooling Efficiency, Rapid Temperature Drop
Cooling capacity: 2–30 t/h; cooling time: 2–5 minutes; temperature drop: 60–80°C—significantly improving production rhythm.
Cooling capacity: 2–30 t/h; cooling time: 2–5 minutes; temperature drop: 60–80°C—significantly improving production rhythm.
Uniform Cooling, Stable Sand Quality
Fluidization ensures every sand grain contacts cold air—no "hot/cold pockets"; post-cooling temperature variation ≤±2°C, minimal moisture loss, excellent flowability.
Fluidization ensures every sand grain contacts cold air—no "hot/cold pockets"; post-cooling temperature variation ≤±2°C, minimal moisture loss, excellent flowability.
Fully Enclosed, Dust-Free & Eco-Friendly
Enclosed design + high-efficiency cartridge filter; dust emission ≤5 mg/m³, noise ≤80 dB(A)—compliant with GB 16297, GB 12348.
Enclosed design + high-efficiency cartridge filter; dust emission ≤5 mg/m³, noise ≤80 dB(A)—compliant with GB 16297, GB 12348.
Energy-Saving, Low Operating Cost
VFD fan + optional heat recovery system saves 30–50% energy compared to rotary drum coolers—adjustable airflow prevents waste.
VFD fan + optional heat recovery system saves 30–50% energy compared to rotary drum coolers—adjustable airflow prevents waste.
Wear-Resistant, Easy Maintenance
Distributor plate, liners, and discharge areas use ceramic, polyurethane, or NM400 alloy steel; modular design allows easy inspection and long service life.
Distributor plate, liners, and discharge areas use ceramic, polyurethane, or NM400 alloy steel; modular design allows easy inspection and long service life.
Intelligent Control, Remote Monitoring
Optional PLC + HMI touchscreen + remote monitoring for automatic control of temperature, airflow, alarms, and data logging—supports MES integration.
Optional PLC + HMI touchscreen + remote monitoring for automatic control of temperature, airflow, alarms, and data logging—supports MES integration.
Main Technical Specifications | |
Parameter | Specification |
Model Series | FTB-1000 / FTB-1500 / FTB-2000 / FTB-3000 |
Capacity | Depending on sand temp & ΔT |
Inlet Sand Temp | 80 – 120°C |
Outlet Sand Temp | Adjustable |
Cooling Medium | Clean ambient or chilled air |
Fan Power | VFD-controlled |
Total Power | 8 – 80 kW |
Weight | 3–25 tons |
Dimensions | Customized by model |
Distributor Material | Perforated steel/ceramic/SS mesh |
Control System | Manual / Auto / PLC+HMI / Remote |
Protection Rating | IP54/IP65 for control panel |
Typical Applications
Sand temperature regulation before resin sand mixers
Rapid cooling of hot reclaimed sand after reclamation
Cooling and screening of coated sand (shell sand) in production lines
Integrated with central sand supply and automated molding lines for precise temperature control
Cooling and drying of powders in chemical, food, and pharmaceutical industries
Rapid cooling of hot reclaimed sand after reclamation
Cooling and screening of coated sand (shell sand) in production lines
Integrated with central sand supply and automated molding lines for precise temperature control
Cooling and drying of powders in chemical, food, and pharmaceutical industries
