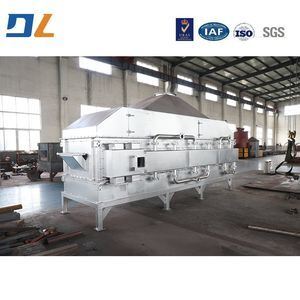

Continuous Fluidized Bed Cooler for Industrial Sand Cooling
| MOQ: | 1 Piece |
| Price: | US $10,000-100,000 |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
S56ll
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Outlet Sand Temperature:
≤50°C (Adjustable)
Blower Power:
18.5 - 75 Kw
Control System:
PLC + HMI Touchscreen, Remote Monitoring Supported
Specific Energy Consumption:
≤0.8 Kwh/T·°C
Specification:
Customizable
Trademark:
DL
Origin:
China
HS Code:
8474802000
Production Capacity:
100
Product Description
Product Description
S56II Series Fluidized Bed Cooler
The S56II Series Fluidized Bed Cooler is a high-efficiency sand cooling system engineered for foundries to rapidly and uniformly cool hot reclaimed sand—from 150–400°C down to ≤50°C—meeting the stringent temperature requirements of high-pressure molding lines. Based on fluidization heat transfer, it injects ambient air through a perforated plenum plate, causing sand particles to enter a suspended "boiling" state for maximum sand-air contact. This achieves 2–3× higher heat exchange efficiency than conventional vibratory or rotary coolers—making it a critical component in green, smart, closed-loop sand reclamation systems.
Working Principle
Infeed: Hot sand (150–400°C) is evenly fed onto the cooler bed.
Fluidized Cooling: A blower forces air through micro-perforated plates, fluidizing the sand layer—maximizing heat transfer via convection and conduction.
Residence Time Control: Internal overflow weirs or baffles create staged zones, ensuring 3–8 minutes of uniform cooling.
Dust-Laden Air Exhaust: Hot, dusty air exits from the top and passes through cyclone + baghouse—emissions ≤10 mg/m³.
Discharge: Cooled sand (≤50°C) is continuously discharged via bottom rotary valve to muller or reclaimer.
Key Technical Features
Ultra-Efficient Cooling – Outlet Sand ≤50°C
Capacity: 30–150 t/h; outlet temperature stably controlled at 40–50°C, eliminating moisture loss, mold strength drop, and metal penetration defects caused by hot sand.
Low Energy Consumption – Cost Efficient
Uses only ambient air—no chillers or chilled water required. Specific energy consumption ≤0.8 kWh/t·°C, saving >30% vs. rotary coolers.
Minimal Maintenance – No Moving Parts in Bed
No rotating, vibrating, or agitating mechanisms inside the bed—only blower and discharge valve require service. Downtime reduced by 50%.
Modular & Scalable
Standard modules (1000–2500 mm wide) can be paralleled for capacities up to 300 t/h. Integrates seamlessly with reclaimers and mullers.
Eco-Compliant & Smart-Controlled
Fully enclosed with dust extraction ports (DN300–DN500). PLC manages airflow, level, and discharge—interlocked with central sand system control.
Capacity: 30–150 t/h; outlet temperature stably controlled at 40–50°C, eliminating moisture loss, mold strength drop, and metal penetration defects caused by hot sand.
Low Energy Consumption – Cost Efficient
Uses only ambient air—no chillers or chilled water required. Specific energy consumption ≤0.8 kWh/t·°C, saving >30% vs. rotary coolers.
Minimal Maintenance – No Moving Parts in Bed
No rotating, vibrating, or agitating mechanisms inside the bed—only blower and discharge valve require service. Downtime reduced by 50%.
Modular & Scalable
Standard modules (1000–2500 mm wide) can be paralleled for capacities up to 300 t/h. Integrates seamlessly with reclaimers and mullers.
Eco-Compliant & Smart-Controlled
Fully enclosed with dust extraction ports (DN300–DN500). PLC manages airflow, level, and discharge—interlocked with central sand system control.
Main Technical Specifications | |
Parameter | Value |
Model | S564II-S565ll-S568ll-S5610ll |
Capacity | 30 – 150 tons/hour |
Inlet Sand Temperature | 150 – 400°C |
Outlet Sand Temperature | ≤50°C (adjustable) |
Cooling Medium | Ambient air (dehumidified or pre-cooled optional) |
Blower Power | 18.5 – 75 kW |
Bed Body Material | Q235B with wear-resistant liners (304 stainless steel optional) |
Dust Emission | ≤10 mg/m³ (with two-stage dust collector) |
Control System | PLC + HMI touchscreen, remote monitoring supported |
Typical Applications
Automotive Engine Lines: Green sand cooled to ≤45°C for stable high-pressure molding
Ductile Iron Pipe Plants: Furan sand cooling prevents premature resin cure
Steel Foundries: Sodium silicate sand temperature control improves shakeout & reclamation
Smart Foundry Pilots: Core unit in "constant-temperature sand" closed-loop systems
Ductile Iron Pipe Plants: Furan sand cooling prevents premature resin cure
Steel Foundries: Sodium silicate sand temperature control improves shakeout & reclamation
Smart Foundry Pilots: Core unit in "constant-temperature sand" closed-loop systems
