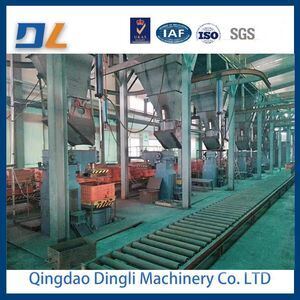

Clay Sand Molding Technology - Dynamic and Static Pressure Casting Line
| MOQ: | 1 Piece |
| Price: | US $10,000-5,000,00 |
Detail Information
Certification
CE, RoHS, GS
Model NO.:
DL
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Color:
Customizable
Molding Rate:
60 ~ 120 Molds/Hour
Drive Type:
Hydraulic / Servo Motor
Compaction Method:
High-Pressure / Multi-Rammer
Transport Package:
Export Packaging
Specification:
Customizable
Trademark:
Dingli
Origin:
China
HS Code:
8474802000
Production Capacity:
10
Product Description
Product Description
Product Description of Clay Sand Molding Line
The Clay Sand Molding Line is an automated molding system designed for green sand casting processes, widely used in the production of gray iron, ductile iron, and steel castings for automotive, agricultural machinery, pumps & valves, and machine tools. Based on high-quality clay-bonded sand, it achieves efficient, stable, and continuous mold production through automated processes including sand feeding, compaction, pattern release, and box closing.
The line features a modular design and can be flexibly configured as vertical molding lines (e.g., Disamatic type), horizontal parting flaskless lines, or automatic pouring lines, suitable for single, double, or triple-shift continuous production to meet diverse casting size and complexity requirements.
Key Process Flow
Molding Sand Preparation
High-performance clay sand from the sand system is conveyed to the molding machine hopper via belt conveyor or bucket elevator.
Sand Filling & Compaction
High-pressure or multi-ramming head compaction ensures uniform sand density and sharp mold definition, improving casting dimensional accuracy.
Mold Release & Conveying
After automatic pattern release, molds are continuously conveyed via chain or roller conveyor to core-setting and box-closing stations.
Core Insertion & Box Closing
Optional automatic core setters and closing units improve efficiency and consistency for complex castings.
Pouring & Cooling
Supports manual or automatic pouring. After pouring, molds enter the cooling section for temperature reduction and preparation for shakeout.
Shakeout & Sand Recovery
Castings are separated and sent to post-processing, while spent sand is returned to the sand reclamation system for recycling.
High-performance clay sand from the sand system is conveyed to the molding machine hopper via belt conveyor or bucket elevator.
Sand Filling & Compaction
High-pressure or multi-ramming head compaction ensures uniform sand density and sharp mold definition, improving casting dimensional accuracy.
Mold Release & Conveying
After automatic pattern release, molds are continuously conveyed via chain or roller conveyor to core-setting and box-closing stations.
Core Insertion & Box Closing
Optional automatic core setters and closing units improve efficiency and consistency for complex castings.
Pouring & Cooling
Supports manual or automatic pouring. After pouring, molds enter the cooling section for temperature reduction and preparation for shakeout.
Shakeout & Sand Recovery
Castings are separated and sent to post-processing, while spent sand is returned to the sand reclamation system for recycling.
Main Technical Specifications (Example) | |
Parameter | Specification |
Mold Size | Customizable |
Molding Rate | 60 ~ 120 molds/hour |
Compaction Method | High-Pressure / Multi-Rammer |
Drive Type | Hydraulic / Servo Motor |
Control System | PLC + HMI with remote communication |
Power Consumption | Depending on configuration |
Sand Type | Clay Sand (Bentonite + Water) |
Emission Standard | China GB or EU EN Standards |
Typical Applications
Automotive engine blocks, heads, brake drums
Ductile iron pipes, manhole covers, brackets
Pump housings, valve bodies
Machine tool beds, end covers, flanges
Agricultural machinery gearboxes, plowshares
Ductile iron pipes, manhole covers, brackets
Pump housings, valve bodies
Machine tool beds, end covers, flanges
Agricultural machinery gearboxes, plowshares
