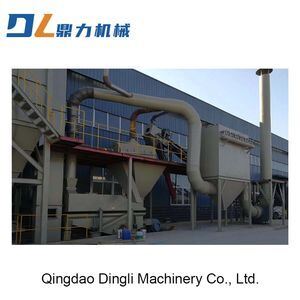

Automated Equipment for Clay Sand Casting - Highly Efficient and Stable

The clay sand production line is an efficient and automated sand processing system specifically designed for the production of cast iron and cast steel parts, and is suitable for the wet sand molding (Green Sand Molding) process. This production line uses natural bentonite and water as binders, and mixes the raw sand, old sand, bentonite and water in precise proportions to produce high-quality clay molding sand with stable performance, good fluidity and strong air permeability. It is widely used in the molding production of black metal castings such as automotive parts, machine tool castings, valve and pipe fittings, and agricultural machinery accessories.

The entire line features a modular design, integrating sand conveying, magnetic separation, crushing, mixing, cooling, and automatic control. With high automation, stable operation, easy maintenance, and energy-saving features, it enables a closed-loop recycling process from spent sand to fresh sand preparation—significantly improving casting efficiency and surface quality.

Spent Sand Recovery & Conveying
Bucket elevators or belt conveyors transport used sand from shakeout to the system for continuous feeding.

Crushing & Screening
Vibratory crushers or drum screens break up lumps and remove impurities, restoring sand to a loose, flowable state.

Magnetic Separation
High-strength magnetic separators effectively remove metal contaminants such as iron beans and filings, ensuring sand purity.

Sand Mixing
Twin-rotor counter-flow or continuous mixers precisely add bentonite, coal powder, and water for high-speed, uniform mixing, ensuring consistent sand properties.

Sand Temperature Control & Cooling (Optional)
Cooling belt or vibrating coolers maintain sand temperature between 35–45°C, preventing performance degradation in hot weather.

Automatic Fresh Sand Addition
The system automatically adds new sand based on consumption to maintain sand balance.

Intelligent Centralized Control
PLC + HMI control system enables full automation, parameter setting, fault alarms, data logging, and remote monitoring.

High Automation
Fully automatic operation with one-button start, reducing manual intervention and improving production stability.

Stable Molding Sand Quality
Precise batching and efficient mixing ensure consistent compactability, green compression strength, and permeability.

Energy-Saving & Eco-Friendly Design
Spent sand recycling rate exceeds 95%, reducing new sand consumption and waste; equipped with high-efficiency dust collectors, emissions ≤30mg/m³.

Modular Structure, Flexible Configuration
Equipment modules can be flexibly combined based on capacity (10–100 t/h), suitable for new workshops or line upgrades.

Easy Maintenance & Reliable Operation
Wear-resistant materials on critical components, rational design, full inspection access, easy maintenance, and long service life.

Comprehensive Safety Protection
Equipped with emergency stop, belt misalignment alarm, overload protection, and gas detection for enhanced safety.

Wet Sand Molding Lines for Gray Iron, Ductile Iron, and Steel Castings

Automotive Engine Block & Head Foundries

Production of Valve, Pump, and Pipe Fitting Castings

Agricultural & Construction Machinery Foundry Lines

Modernization of Conventional Clay Sand Systems

Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery. It mainly manufactures and processes equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam casting, sodium silicate sand, etc. It can undertake various turnkey projects, including the design, manufacturing, installation and commissioning of mechanical sand treatment. Our factory has strong technical strength and advanced processing equipment. We have long-term and close technical cooperation with many senior experts and scholars from domestic universities and research institutions. We can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through technology, prioritizing quality, continuous improvement and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life and achieve common prosperity.
Our company mainly undertakes the following projects:
20-180t/h mechanized clay sand processing production line and single machine equipment turnkey project.
Annual production of 1000 to 20,000 tons of consolidated resin sand casting mechanized production line and single machine equipment turnkey project.
Annual production of 3,000 to 10,000 tons of hot processing coated sand complete equipment and single machine equipment turnkey project.
Annual production of 3,000 to 7,000 tons of hot coated sand regeneration complete equipment and single machine equipment turnkey project.
5-15t/h sodium silicate mechanical production line and single machine equipment turnkey project.
5-30t/h three-stage sand drying equipment and single machine equipment turnkey project.
5-40t/h lost foam casting complete equipment and single machine equipment turnkey project.
Various shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, environmental protection dust removal equipment.
Welcome to contact us~
