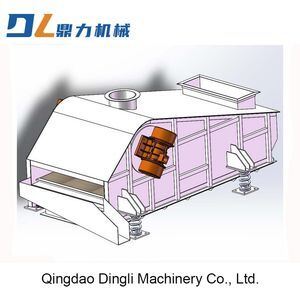

Clay-Sand Biaxial Inertial Vibrating Screen
Basic Properties
Certification:CE
Trading Properties
Minimum Order Quantity:1 Piece
Price:US $6,800 / Piece
Specifications
| Model NO.: | S45 | Control Type: | PLC |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Automatic Grade: | Automatic | Type: | Sand Casting |
| Model: | The Table Below | Capacity: | 10 To 100 Tons Per Hour |
| Motor Power: | 2×0.7kw ~ 2×3kw | Control Mode: | Button / PLC |
| Transport Package: | Export Packaging | Specification: | Customizable |
| Trademark: | Dingli | Origin: | China |
| HS Code: | 8474802000 | Production Capacity: | 30 |
Product Description
Product Description
S45 Series Inertial Linear Vibrating Screen
The S45 Series Inertial Linear Vibrating Screen is a high-efficiency, energy-saving and durable screening equipment widely used in foundry, metallurgy, building materials, chemical industry, mining and other industries. It is especially suitable for grading, dewatering, desliming and impurity separation of molding sand, granular materials and powders.
Based on the inertial vibration principle driven by dual motors, the machine produces linear motion trajectory with high screening efficiency, large capacity, stable operation and low noise. The series can be customized with multi-layer screen structures, various screen materials (stainless steel, polyurethane, perforated plate), and optional dust-proof cover and dust removal interface to meet both dry and wet screening requirements.
Product Features
Dual motor drive generates linear vibration path, ensuring high screening efficiency and large throughput for continuous production.
Main frame made of high-quality carbon steel or stainless steel, with high strength, wear resistance and fatigue resistance.
Supports 2 to 4 layers of screen mesh for multi-stage classification to meet different particle size requirements.
Equipped with PLC control cabinet or button box, supports remote start/stop, fault alarm, frequency adjustment, etc.
Optimized vibration system and sound insulation structure keep noise below 80dB(A); optional dust collector improves working environment.
Modular design with standardized key components ensures easy maintenance and long service life.
Main technical parameters
Main frame made of high-quality carbon steel or stainless steel, with high strength, wear resistance and fatigue resistance.
Supports 2 to 4 layers of screen mesh for multi-stage classification to meet different particle size requirements.
Equipped with PLC control cabinet or button box, supports remote start/stop, fault alarm, frequency adjustment, etc.
Optimized vibration system and sound insulation structure keep noise below 80dB(A); optional dust collector improves working environment.
Modular design with standardized key components ensures easy maintenance and long service life.
Main technical parameters
Parameters | S456 | S457 | S458 | S4510 | S4512 |
Screen width (mm) | 600 | 650 | 800 | 1000 | 1200 |
Operating amplitude (mm) | 3 | 3 | 3~3.5 | 3~3.5 | 3~3.5 |
Vibration motor (kw) | 2x0.75 | 2x1.1 | 2 x1.5 | 2x2.2 | 2x3 |
Productivity(m3/h) | 20 | 30 | 50 | 70 | 100 |
Parameters | ZS456 | ZS457 | ZS458 | ZS4510 | ZS4512 |
Screen width (mm) | 600 | 650 | 850 | 1000 | 1200 |
Operating amplitude (mm) | 3 | 3 | 3~3.5 | 3~3.5 | 3~3.5 |
Vibration motor (kw) | 2x1.1 | 2x1.5 | 2 x1.5 | 2x2.2 | 2x2.2 |
Productivity(m3/h) | 20 | 30 | 50 | 70 | 100 |
Typical Applications
Molding Sand Screening
Pre-screening for Sand Regeneration
Ore Grading
Powder Impurity Removal
Building Material Screening
Dewatering of Wet Sand
Company Profile
Qingdao dingli machinery Co., Ltd
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery and equipment. Mainly produce equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam, sodium silicate sand, etc. It is capable of undertaking various turnkey projects, including the design, manufacture, installation and commissioning of mechanical sand treatment. Our factory has strong technical force and advanced processing equipment. It has long-term and close technical cooperation relationships with many senior experts and scholars from domestic universities and research institutions. It can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through science and technology, prioritizing quality, continuous improvement, and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
Turnkey project of 20-180t/h mechanized clay sand processing production line and single-machine supporting equipment.
Turnkey project of mechanized production line for casting of condensed resin sand with an annual output of 1,000 to 20,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for hot processing coated sand with an annual output of 3,000 to 10,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for regenerating hot-coated sand with an annual output of 3,000 to 7,000 tons and single-machine supporting equipment.
Turnkey project of 5-15t/h sodium silicate mechanical production line and single-machine supporting equipment.
Turnkey project of 5-30t/h three-stage sand-making and drying equipment and single-machine supporting equipment.
5-40t/h lost foam casting complete set equipment turnkey project and single machine supporting equipment
All kinds of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, and environmental protection dust removal equipment.
Welcome to contact us ~
Our company adheres to the principles of promoting enterprise development through science and technology, prioritizing quality, continuous improvement, and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
Turnkey project of 20-180t/h mechanized clay sand processing production line and single-machine supporting equipment.
Turnkey project of mechanized production line for casting of condensed resin sand with an annual output of 1,000 to 20,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for hot processing coated sand with an annual output of 3,000 to 10,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for regenerating hot-coated sand with an annual output of 3,000 to 7,000 tons and single-machine supporting equipment.
Turnkey project of 5-15t/h sodium silicate mechanical production line and single-machine supporting equipment.
Turnkey project of 5-30t/h three-stage sand-making and drying equipment and single-machine supporting equipment.
5-40t/h lost foam casting complete set equipment turnkey project and single machine supporting equipment
All kinds of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, and environmental protection dust removal equipment.
Welcome to contact us ~
