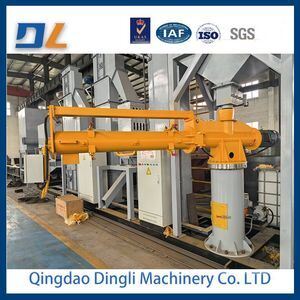

S24 Single Arm Continuous Sand Mixer for Resin and Sodium Silicate Sand
Trading Properties
Minimum Order Quantity:1 Piece
Price:US $1-49,999 / Piec
Specifications
| Model NO.: | S24 | Control Type: | PLC |
|---|---|---|---|
| Customized: | Customized | Condition: | New |
| Automatic Grade: | Automatic | Type: | Sand Casting |
| Color: | Customizable | Scope Of Application: | Casting Industry |
| Dust Removal Rate: | 99% | Emission Purification Rate: | 99% |
| Transport Package: | Export Packaging | Specification: | Customizable |
| Trademark: | Dingli | Origin: | China |
| HS Code: | 8474802000 | Production Capacity: | 10 |
Product Description
Product Description
The S24 Series Single-Arm Continuous Sand Mixer is a key equipment used in the foundry industry for continuous mixing of resin self-hardening sand, sodium silicate sand, coated sand and other types of core and mold sands. This model adopts advanced spiral mixing technology and PLC automatic control system to achieve uniform and continuous blending of raw sand, binder, and hardener.
With a compact structure, stable operation, low energy consumption, and easy maintenance, it is especially suitable for automated sand mixing operations in medium to large-scale foundries. It is an ideal choice for improving sand quality and production efficiency.
Product Features
Single-arm spiral continuous mixing ensures high mixing uniformity and large sand output, meeting the needs of large-scale continuous production.
Equipped with PLC control system and touch screen interface, real-time monitoring of mixing ratio, flow rate, temperature and other parameters, supports remote control and fault diagnosis.
Independent metering systems for raw sand, binder, and hardener ensure high precision and stable mixing quality.
Energy-saving motor drive with low noise and minimal dust emission, meeting modern green casting standards.
Multiple safety protection devices (emergency stop button, overload protection, anti-clogging design) ensure safe operation.
Modular design with easily removable key components for convenient cleaning and maintenance.
Equipped with PLC control system and touch screen interface, real-time monitoring of mixing ratio, flow rate, temperature and other parameters, supports remote control and fault diagnosis.
Independent metering systems for raw sand, binder, and hardener ensure high precision and stable mixing quality.
Energy-saving motor drive with low noise and minimal dust emission, meeting modern green casting standards.
Multiple safety protection devices (emergency stop button, overload protection, anti-clogging design) ensure safe operation.
Modular design with easily removable key components for convenient cleaning and maintenance.
parameters | S243 | S245 | S248 | S2412 | S2415 | S2420 |
productivity(t/h) | 3 | 5 | 8 | 12 | 15 | 20 |
Motor power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
Motor speed (r/min) | 960 | 960 | 960 | 720 | 730 | 730 |
Turning radius (mm) | R2000 | R2000 | R2000 | R2000 | R2000 | R2000 |
Resin pumpmodel | CB-B2.5 | CB-B4 | CB-B6 | CB-B6 | CB-B6 | CB-B6 |
Curing pumpagent model | OBL-50 | OBL-50 | OBL-50 | OBL-75 | OBL-75 | OBL-75 |
Main Components
Feeding System:It includes raw sand silos, binder tanks, curing agent tanks and quantitative feeding devices.
Mixing UnitIt is composed of a spiral stirring shaft, wear-resistant liners and a mixing cylinder to ensure the thorough mixing of materials.
Metering System:High-precision electronic scales or loss-in-weight metering devices ensure accurate proportioning.
Electrical Control System:Integrate the PLC controller with the human-machine interface to achieve fully automatic control.
Dust Removal & Sealing Structure:Prevent dust from spilling out and keep the workshop environment clean.
Mixing UnitIt is composed of a spiral stirring shaft, wear-resistant liners and a mixing cylinder to ensure the thorough mixing of materials.
Metering System:High-precision electronic scales or loss-in-weight metering devices ensure accurate proportioning.
Electrical Control System:Integrate the PLC controller with the human-machine interface to achieve fully automatic control.
Dust Removal & Sealing Structure:Prevent dust from spilling out and keep the workshop environment clean.
The S24 Series Single-Arm Continuous Sand Mixer has become an indispensable core equipment for modern foundries due to its high efficiency, intelligence, and environmental friendliness. Whether you are building a new casting line or upgrading an existing plant, we can provide you with professional and reliable sand mixing solutions to help your casting production reach new heights of intelligence and automation!
Company Profile
Qingdao Dingli Machinery Co., LTD
Qingdao Dingli Machinery Co., Ltd. is a company specializing in the production of casting machinery and equipment. Mainly produce and process equipment for casting clay sand, resin sand, coated sand, wet sand drying, lost foam, and sodium silicate sand. It is capable of undertaking various turnkey projects, including the design, manufacture, installation and commissioning of mechanical sand treatment. Our factory has strong technical force and advanced processing equipment. It has long-term and close technical cooperation relationships with many senior experts and scholars from domestic universities and research institutions. It can provide users with high-performance, reliable products and satisfactory services.
Our company adheres to the principles of promoting enterprise development through science and technology, prioritizing quality, continuous improvement, and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
Turnkey project of 20-180t/h mechanized clay sand processing production line and single-machine supporting equipment.
Turnkey project of mechanized production line for casting of condensed resin sand with an annual output of 1,000 to 20,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for hot processing coated sand with an annual output of 3,000 to 10,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for regenerating hot-coated sand with an annual output of 3,000 to 7,000 tons and single-machine supporting equipment.
Turnkey project of 5-15t/h sodium silicate mechanical production line and single-machine supporting equipment.
Turnkey project of 5-30t/h three-stage sand-making and drying equipment and single-machine supporting equipment.
5-40t/h lost foam casting complete set equipment turnkey project and single machine supporting equipment
All kinds of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, and environmental protection dust removal equipment.
Welcome to contact us ~
Our company adheres to the principles of promoting enterprise development through science and technology, prioritizing quality, continuous improvement, and customer satisfaction. We are willing to sincerely cooperate with friends from all walks of life to achieve common prosperity.
Our company mainly undertakes the following projects:
Turnkey project of 20-180t/h mechanized clay sand processing production line and single-machine supporting equipment.
Turnkey project of mechanized production line for casting of condensed resin sand with an annual output of 1,000 to 20,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for hot processing coated sand with an annual output of 3,000 to 10,000 tons and single-machine supporting equipment.
Turnkey project of complete sets of equipment for regenerating hot-coated sand with an annual output of 3,000 to 7,000 tons and single-machine supporting equipment.
Turnkey project of 5-15t/h sodium silicate mechanical production line and single-machine supporting equipment.
Turnkey project of 5-30t/h three-stage sand-making and drying equipment and single-machine supporting equipment.
5-40t/h lost foam casting complete set equipment turnkey project and single machine supporting equipment
All kinds of shot blasting cleaning equipment, lifting equipment, conveying equipment, cooling equipment, magnetic separation equipment, and environmental protection dust removal equipment.
Welcome to contact us ~
