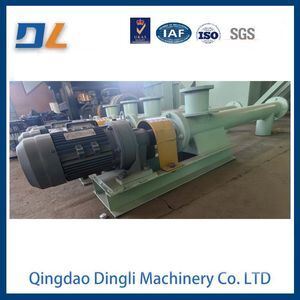

Spiral Conveyor - High-Power Material Conveying Equipment
| MOQ: | 1 Piece |
| Price: | US $1,400 / Piece |
Detail Information
Certification
CE, RoHS, GS, ISO9001
Model NO.:
DL
Control Type:
PLC
Customized:
Customized
Condition:
New
Automatic Grade:
Automatic
Type:
Sand Casting
Metering Accuracy:
0.5% (with Weighing System)
Speed Range:
VFD Adjustable
Motor Power:
0.75 - 15 Kw
Conveying Length:
Customizable
Transport Package:
Custom
Specification:
Customizable
Trademark:
DL
Origin:
Qingdao, China
HS Code:
8474802000
Production Capacity:
800
Product Description
Product Description
Product Description of Screw Feeder
The Screw Feeder is a continuous volumetric conveying device widely used in industrial applications such as resin sand mixing systems, coated sand lines, cement batching, powder modification, biomass fuel, flue gas desulfurization, chemical reactor feeding, etc., for stable, uniform, and controllable feeding of bulk materials like base sand, powders, granules, and additives. Utilizing a rotating screw shaft to propel material, combined with frequency control, weight feedback, and intelligent control, it enables applications ranging from coarse feeding to high-precision dosing—making it an essential conveying and metering unit in automated production lines.
Available in horizontal, inclined (≤20°), or vertical (short-distance) configurations, this screw feeder series can be customized based on material properties, capacity, and space requirements, with a conveying capacity of 0.1–100 m³/h. It is suitable for various operating conditions including ambient, high-temperature, corrosive, and abrasive environments. Its compact structure and excellent sealing prevent dust leakage, meeting environmental and safety standards.
Core Functions & Working Principle
1. Continuous & Stable Feeding
Driven by a motor, the rotating screw shaft continuously conveys material in a U-trough or tubular housing, ensuring pulse-free, uniform, and stable discharge—eliminating "material interruption" or "surge feeding".
Driven by a motor, the rotating screw shaft continuously conveys material in a U-trough or tubular housing, ensuring pulse-free, uniform, and stable discharge—eliminating "material interruption" or "surge feeding".
2. Frequency-Controlled Speed Regulation
(VFD),(0–60 rpm),,.
Equipped with a Variable Frequency Drive (VFD), allowing stepless speed adjustment (0–60 rpm) for precise flow control, adaptable to varying production rates and recipe requirements.
3. High-Precision Metering (Optional)
Optional integration with load cells + speed encoder enables loss-in-weight or weigh-belt metering systems, achieving dynamic accuracy of ±0.5%—ideal for precise dosing of resin, hardener, and additives.
4. Wear-Resistant Design
Screw blades made of wear-resistant alloy steel (e.g., NM400, 65Mn) or tungsten carbide cladding/spraying; housing lined with ceramic tiles or polyurethane plates—greatly extending service life, especially for abrasive materials like silica sand or ore powder.
5. Sealing & Dust Control
Multi-layer sealing (labyrinth + packing + air seal) at inlets, outlets, and bearings prevents dust leakage.
Optional dust extraction port connects to pulse cartridge filters for a clean workshop environment.
Key Features
Controllable Flow, Precise Adjustment
VFD enables stepless adjustment; capacity adjustable from 10%–100% with fast response and high accuracy.
VFD enables stepless adjustment; capacity adjustable from 10%–100% with fast response and high accuracy.
Robust Structure, Smooth Operation
Heavy-duty frame, rigid U-trough/tubular housing, drive system with hardened gear reducer + coupling—low vibration, low noise (≤75 dB).
Easy Maintenance, Long Life
Features quick-release end caps, replaceable blades, external bearings—easy inspection; wear parts last 2–5 years depending on conditions.
Smart Integration, Remote Monitoring
Optional PLC module, HMI touchscreen, 4–20mA output, Modbus communication—enables integration with central control for remote monitoring and data logging.
Suitable for dry powders (cement, fly ash), granules (sand, plastic pellets), small lumps (coal, slag), with temperature resistance from -20°C to +400°C (high-temp version).
Safe & Reliable, Comprehensive Protection
Features overload protection, emergency stop, blockage alarm, temperature monitoring—ensures long-term stable operation.
Main Technical Specifications | |
Parameter | Specification |
Model Series | LS-100 / LS-200 / LS-300 / LS-400 / LS-500 |
Screw Diameter | Φ100 – Φ500 mm |
Conveying Length | Customizable |
Capacity | Depending on material density & speed |
Motor Power | 0.75 – 15 kW |
Speed Range | VFD adjustable |
Metering Accuracy | ±0.5% (with weighing system) |
Control Mode | Manual / VFD / PLC Auto |
Housing Material | Carbon steel / SS304/316 / ceramic lining |
Protection Rating | IP54/IP65 for motor & control |
Typical Applications
Precise base sand feeding for resin sand mixers
Metering addition of resin and hardener in coated sand lines
Powder batching systems for cement, fly ash, lime
Continuous fuel feeding for biomass boilers and coal-fired power plants
Reactor feeding systems in chemical and pharmaceutical industries
Limestone/urea powder conveying in FGD/SCR systems
Metering addition of resin and hardener in coated sand lines
Powder batching systems for cement, fly ash, lime
Continuous fuel feeding for biomass boilers and coal-fired power plants
Reactor feeding systems in chemical and pharmaceutical industries
Limestone/urea powder conveying in FGD/SCR systems
